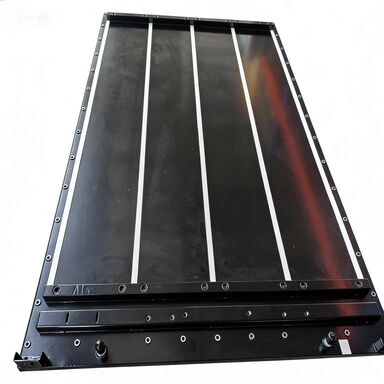

ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame

Cantidad Mínima De Pedido:	100
Precio:	$120-150
Embalaje Estándar:	CAJA DE MADERA
Período De Entrega:	5-6 semanas
Método De Pago:	T/T
Capacidad De Suministro:	2000 unidades/día

Información detallada

Descripción del Producto

Información detallada

Lugar de origen

ciudad de suqian

Nombre de la marca

Trumony

Certificación

ISO9001

Número de modelo

1P48S

Material:

Aluminio 3003, acero Q235.

Tratamiento superficial:

Recubrimiento en polvo, anodizado

Las células:

280/314Ah

Módulo:

Paquete de baterías 1P52/1P48S

Caída de presión:

15KPA

Cargando y descargando tarifa:

0,5ºC

Resaltar:

aluminum liquid cooling plate

314 cell battery tray

steel frame cooling plate

Descripción del Producto

Product Overview

This liquid cooling plate is specially designed for energy storage battery packs. Made of high-quality aluminum alloy for excellent heat conductivity, it is precisely matched to 1P48S configuration and 314 cells, while the integrated steel frame enhances structural stability and load-bearing capacity. It efficiently dissipates heat to maintain stable battery temperature, ensuring long-term reliable operation of energy storage systems.

Liquid cold plates have become the mainstream thermal management solution for high-performance EV power batteries and large-scale ESS. They effectively solve overheating, uneven temperature, and low-temperature performance issues, supporting safer, longer-life, and higher-power battery systems.

Technical Specifications:

Performance	parameter	unit
Alloy	3003mod	/
Regular size	flow plate 1.2 mm;flat plate 1.5 mm;flow height 3mm	mm
Temperature difference	3~5	℃
Flow resistance	15	Kpa
Charge and discharge rate	0.5	c
Application	Energy storage battery pack

Applications

Grid-side energy storage
Industrial & commercial energy storage cabinets
Home energy storage systems (ESS)
Battery energy storage power stations

Why Choose Us

1. Large production capacity - ensures stable supply
2. Complete process - fully controllable throughout, fast delivery
3. High professionalism - rich experience, high project success rate
4. Excellent single-process performance - cost-effective, high quality
5. Can be optimized with standard models - low development cost, fast delivery

FAQ

Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?

A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.

Q2:What else can we offer?

A2:The box body and related products such as top cover ,end plate and pipelines are available.

Q3:MOQ

A3In fact, there is no (MOQ). Customized samples can also be provided.

Q4:What technical capabilities do we have?

A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation

Q5:General delivery time

A5:The sample stage: 40 -45 days.Mass production stage: 35 days

Etiquetas:
Placa de frío líquido de la batería ESS,

Placas de refrigeración de líquido personalizables,

Cuadro de la batería ESS
