DETALLES DE LOS PRODUCTOS

Hogar > Productos >

104s Custom Liquid Cooled Plate for BESS Energy Storage System Cooling

Productos

Tubo de microcanal de aluminio

protuberancias de aluminio de encargo

Lámina de aleación de aluminio

Batería de aluminio del aire

Contáctenos

sales4@trumony.com

+86 18018119117

Contacta ahora

104s Custom Liquid Cooled Plate for BESS Energy Storage System Cooling

Cantidad Mínima De Pedido:	5 piezas
Precio:	$200-$250
Embalaje Estándar:	Cajas de madera de pliegue especializadas para la exportación
Período De Entrega:	35 dias
Método De Pago:	T/T, L/C
Capacidad De Suministro:	3000 unidades/día

Información detallada

Descripción del Producto

Información detallada

Lugar de origen

China, ciudad de Suquan

Nombre de la marca

Trumony

Certificación

ISO9001,IATF

Número de modelo

Trumony-04245

Proceso de producción:

Soldadura fuerte, extrusión, punzonado, CNC,

Material:

3003,4043

Tamaño:

Según el requisito/diseño de los clientes

Solicitud:

Paquete de baterías para vehículos eléctricos

Garantía:

1 año

Tolerancia:

0,05 mm

Resaltar:

BESS liquid cooling plate

custom liquid cold plate

energy storage system cooling plate

Descripción del Producto

Products introduction:

Our liquid cooled plate is specially designed for ESS (Energy Storage System) applications, focusing on meeting the thermal management needs of energy storage systems such as grid energy storage, industrial energy storage, and household energy storage. It is an essential core component to ensure the stable operation of ESS.

Made of high-quality aluminum alloy and manufactured by mature vacuum brazing technology, the liquid cooled plate has excellent thermal conductivity and airtight performance, which can effectively adapt to the long-term stable operation of ESS equipment in different environments. It perfectly matches the installation specifications of ESS cabinets, and can quickly conduct heat exchange to avoid overheating of energy storage modules, ensuring the safe and efficient operation of the entire energy storage system.

We provide flexible customization based on ESS application scenarios: whether it is a large-scale grid energy storage project or a small household energy storage system, we can adjust the product size, flow channel design and interface type according to the actual ESS configuration. At the same time, relying on our mature public molds, we can quickly deliver products without additional development costs, and ensure the stability and consistency of product quality through strict airtightness and dimensional testing.

Product Parameter

Cold plate shell material	3003(常规)
density	2702	kg/m³
specific heat	903	J/kg.K
thermal conductivity	175	W/m.K
coolant	乙二醇水溶液(50%)
density	1073.35	kg/m³
specific heat	3281	J/kg.K
heat conductivity coefficient	0.38	W/m.K
viscosity	0.00339	Pa·S
environment temperature	25	℃
Ambient natural convection heat transfer coefficient	/	W/(m^2-K)
inlet temperature	20	℃
inlet flow rate	10	L/min
cell's parameters
Charge and discharge heating power of the cell	14/13.5	W
density	2260	kg/m³
specific heat	1090	J/kg.K
thermal conductivity	1.27/11/14.88	W/m.K
Thermal conductive interface material
density	2300	kg/m³
specific heat	1000	J/kg.K
thermal conductivity	1.5	W/m.K

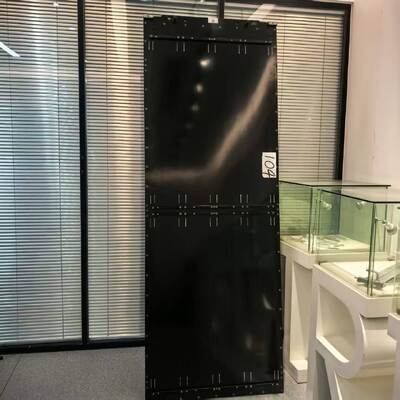

104s Custom Liquid Cooled Plate for BESS Energy Storage System Cooling 0

Why Choose Us

Strong Production & Delivery Capacity
We are a direct manufacturer with two independent vacuum brazing production lines and a two-shift working system. Stable mass production ensures on-time delivery and flexible order fulfillment for global clients.
Professional R&D & One-Stop Service
Supported by an experienced technical team, we provide comprehensive solutions from customized design, structural optimization, sample verification to formal mass production, delivering one-stop services to meet your diverse cooling demands.
Strict Quality Control
Every liquid cooled plate undergoes precise dimensional inspection and 100% air tightness testing. Rigorous quality procedures guarantee leak-proof performance, high stability and long service life for long-term operation.
Rich Industry Experience
With more than 15 years of specialized experience in thermal cooling industry, our products have been exported to 56 countries worldwide. We possess mature expertise to serve EV, BESS, data center and industrial cooling projects.

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 18 years history in this industry.

Q: What is your terms of payment ?

A: Normally 100% T/T In advance,But this is something that can be negotiated.

Q: How long does it take for samples and mass production?

A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
